1000kg Capacity Manual Stacker | Warehouse Racking

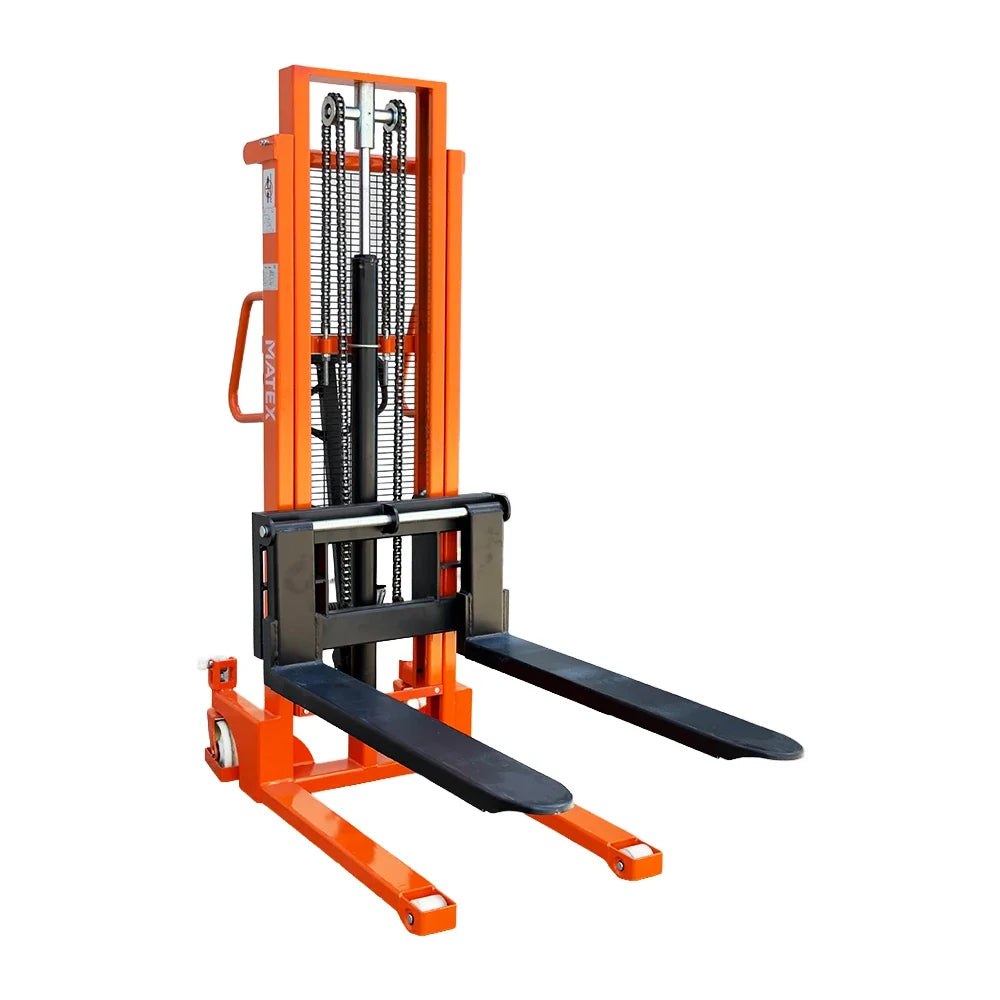

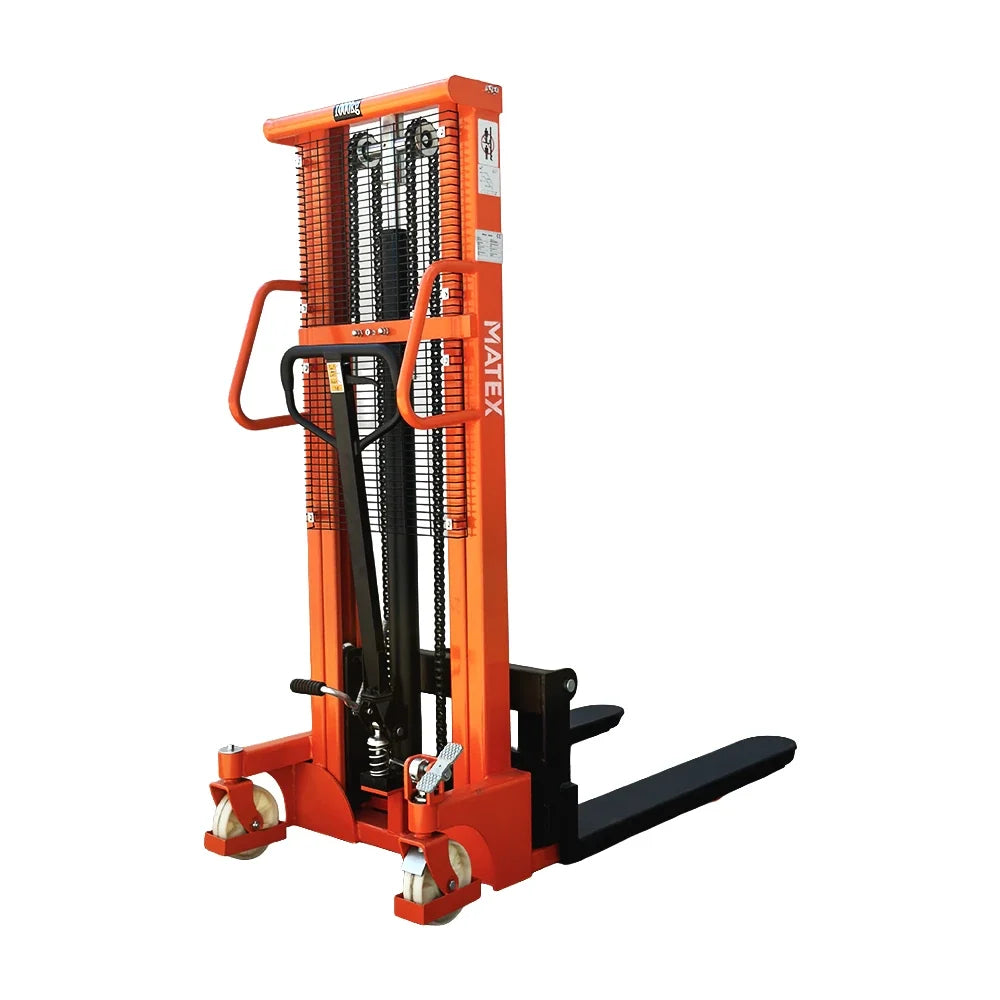

Moving heavy loads into first-level racking without a powered forklift often slows down a warehouse operation and increases physical strain on staff. This manual hand walkie stacker solves that bottleneck by providing a dedicated way to lift and transport goods in warehouse environments or industrial facilities where agility is required. It serves as a reliable piece of materials handling equipment for sites that need vertical lift without the overhead of battery charging or fuel costs.

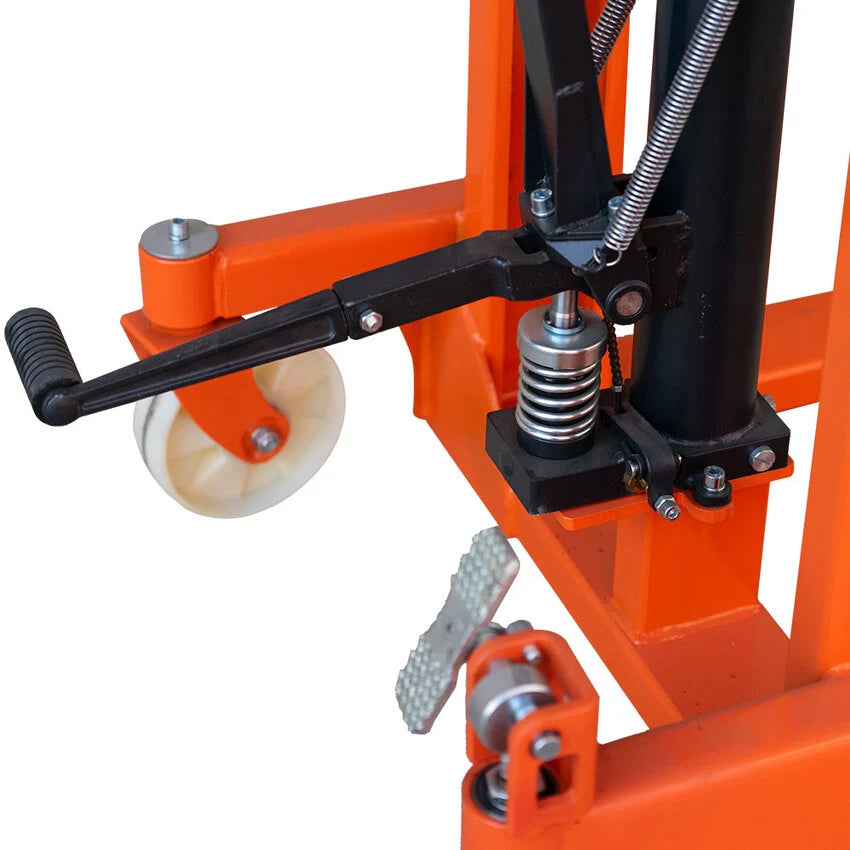

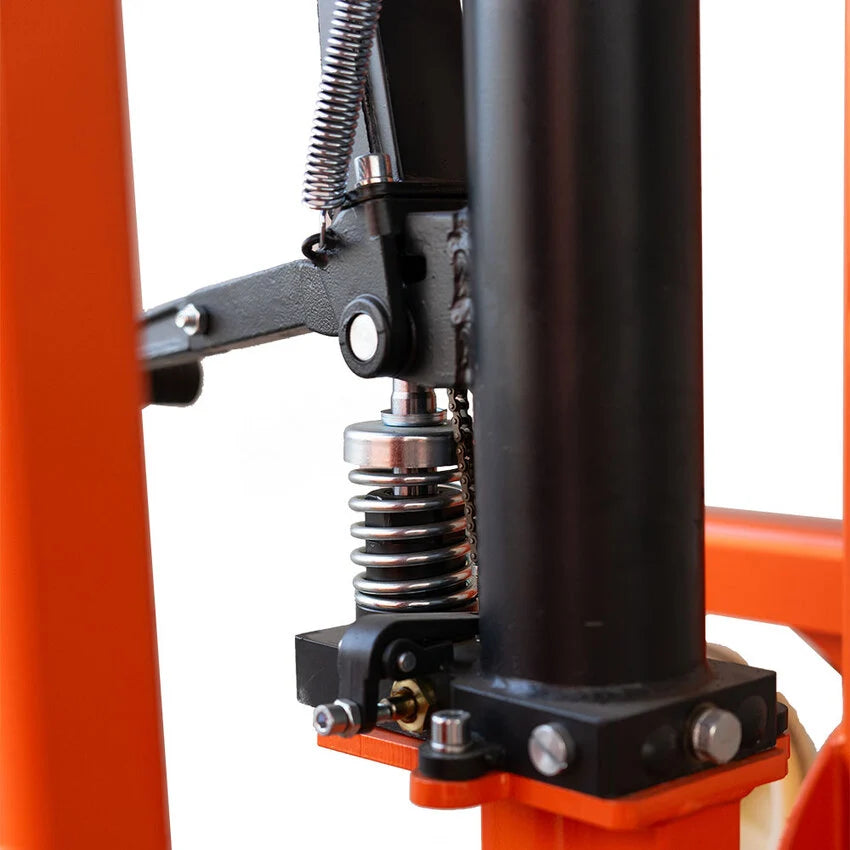

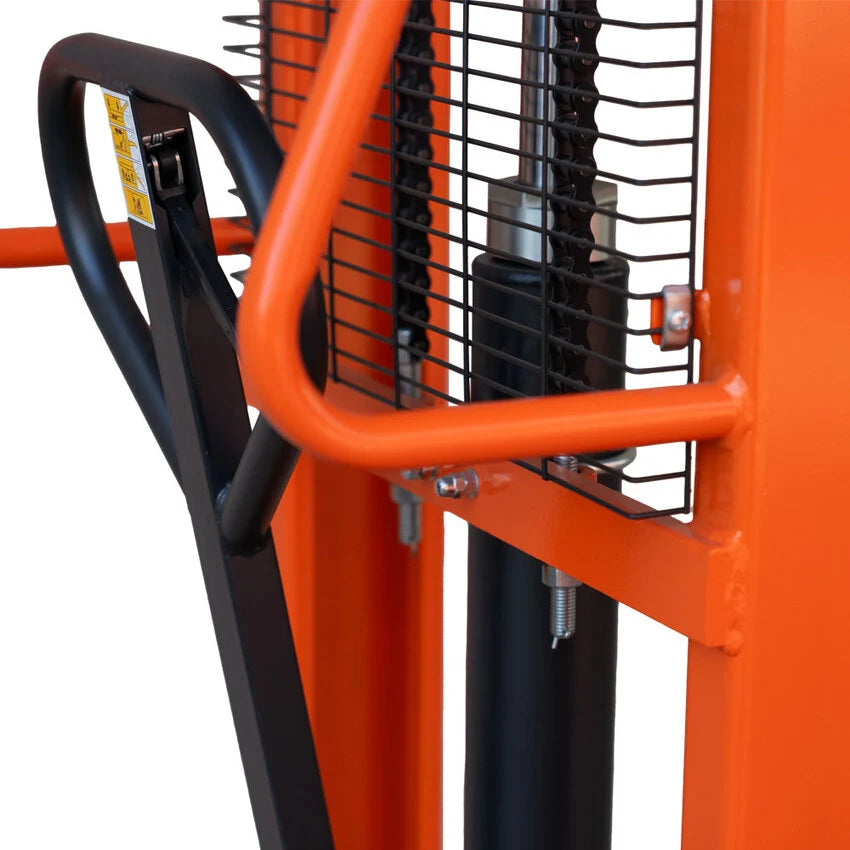

Operators handle the unit using ergonomic handles and a long tiller, which allows for effortless pulling during transport across the floor. The lifting process is managed through a precision hydraulic tiller pump and a foot pedal, allowing the user to position loads accurately. To ensure stability when stationary, the unit features a lockable rear wheel with a foot lock brake and a mechanical parking brake, which reduces the risk of the stacker drifting while loading or unloading. The powder-coated steel finish protects the chassis from the scuffs and scrapes common in high-traffic loading zones.

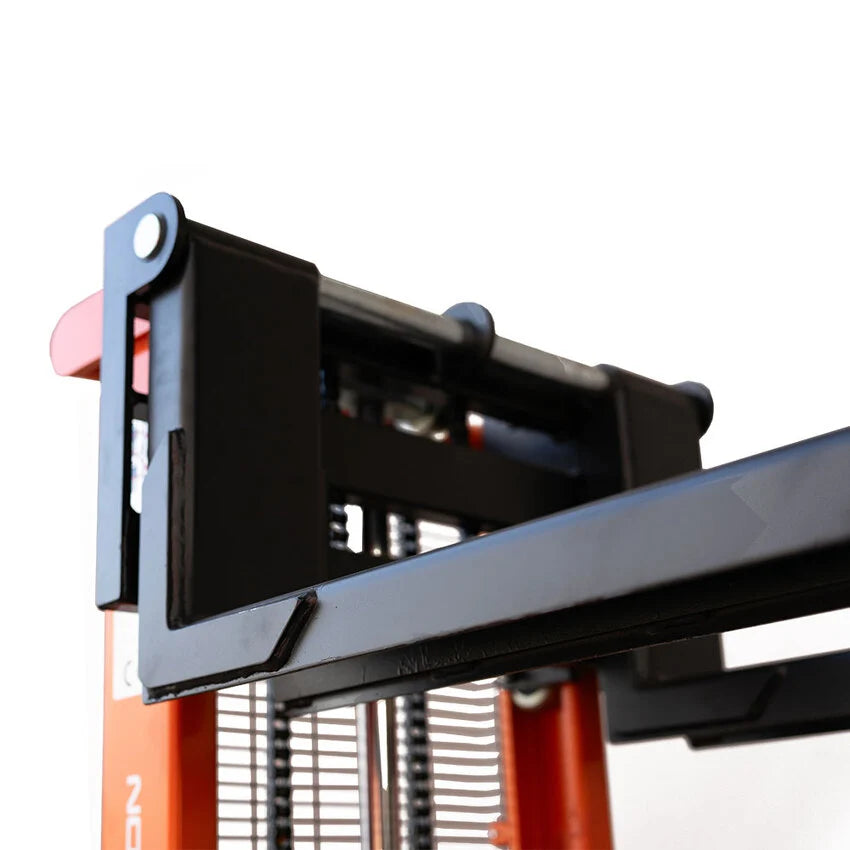

This model features a maximum fork height of 2500mm and a minimum height of 85mm, with adjustable fork widths ranging from 330mm to 740mm. The unit weighs 325kg and uses 180 x 50mm load wheels. This configuration is specifically suited for lifting open-based pallets in tight aisles.

Features

• 1000kg lifting capacity for first-level stacking
• Maximum fork lift height of 2500mm
• Adjustable fork widths from 330mm to 740mm
• Precision hydraulic lifting via tiller pump and foot pedal
• Mechanical parking brake and lockable rear wheels
• Powder-coated steel finish for increased durability
• Designed specifically for use with open-based pallets

Specifications
