100kg Capacity Expandable Conveyor | Warehouse Loading

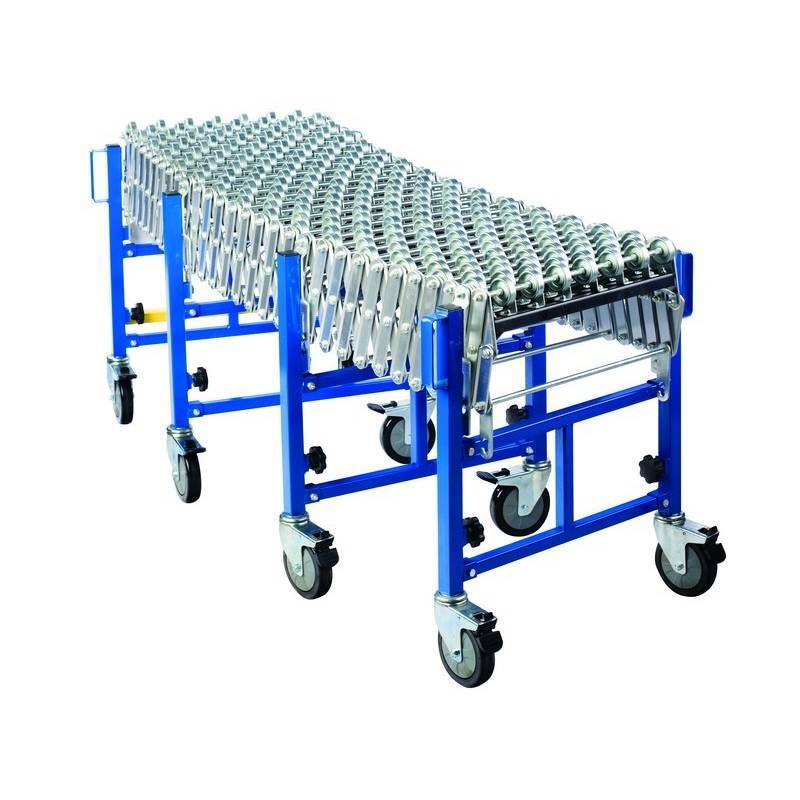

Warehouse operators and distribution centre staff use this expandable skate wheel conveyor to bridge the gap between transport vehicles and sorting areas. It functions as a flexible piece of materials handling equipment that can be deployed quickly to move cartons and parcels without the need for constant manual lifting. This setup is essential for high-volume loading docks where space and speed are priorities.

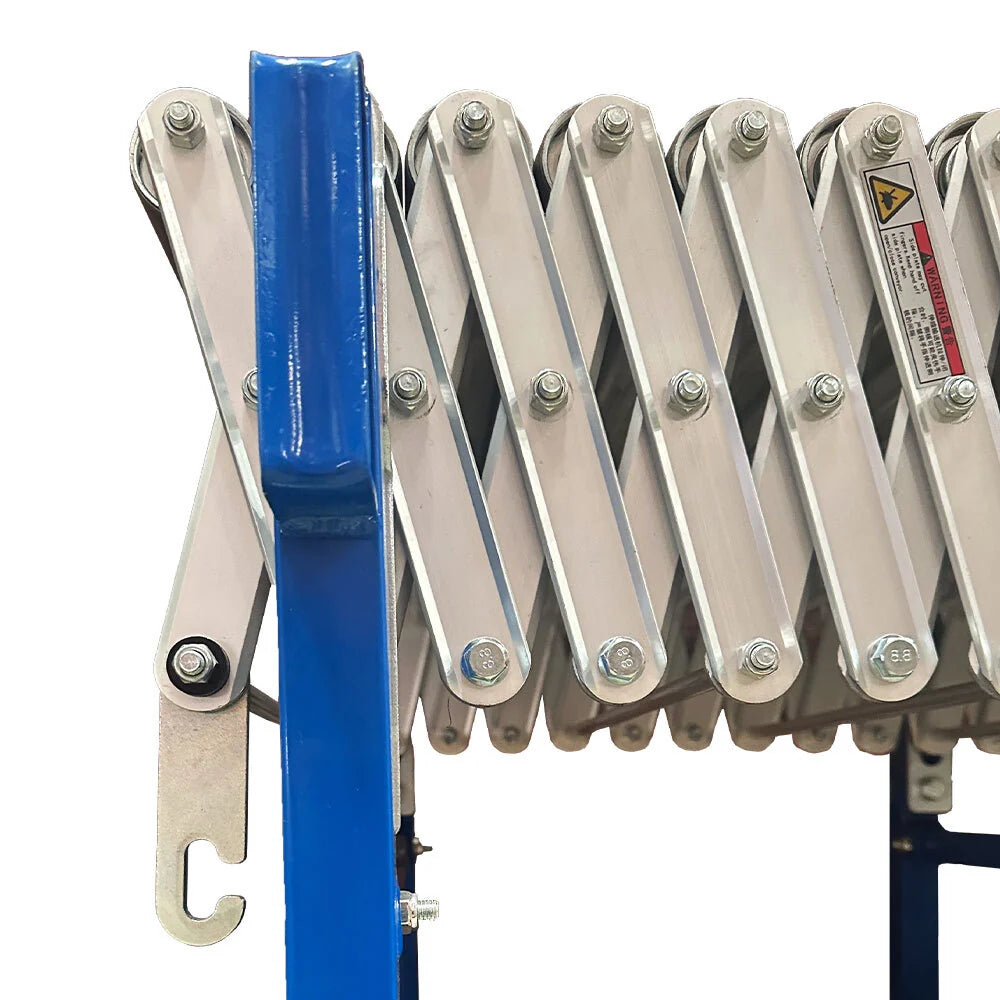

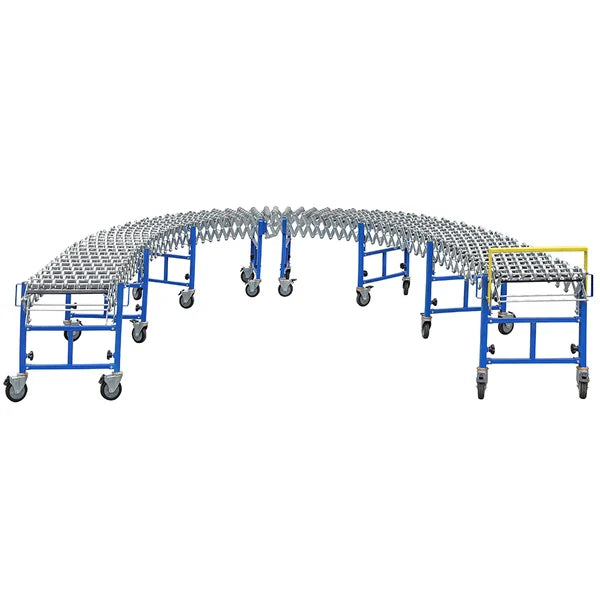

The unit is designed to expand, contract, twist, and turn, allowing it to fit into awkward spaces or navigate around existing site obstacles. By using the adjustable height legs and lockable castors, staff can align the conveyor perfectly with the height of a truck bed or a packing table. The self-tracking design ensures that loads stay centred as they move, which reduces the risk of items falling off the side during transit. Because it collapses down to a compact size, it can be tucked away when not in use, leaving the floor clear for pallet jacks or other trolleys.

This model features a width of 450mm and a load capacity of 100kg per metre. It extends from a retracted length of 1000mm to a full 3900mm, with a height range of 690 to 1000mm supported by 125mm castors. These specifications suit environments with fluctuating load volumes and limited storage footprints.

Features

• Expands from 1000mm to 3900mm for versatile configuration
• Load capacity rated at 100kg per metre
• Adjustable height range from 690mm to 1000mm

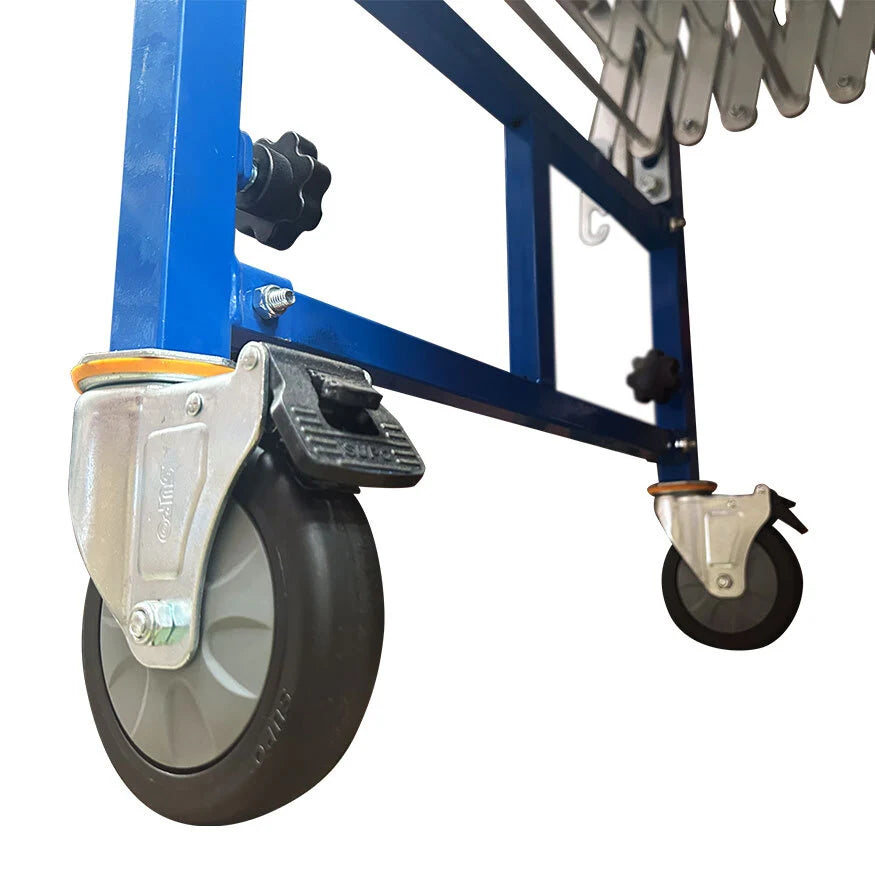

• Equipped with 125mm lockable castors for stability
• Self-tracking design to improve operational efficiency
• Compact collapsed footprint for easy storage

Specifications
