100kg Capacity Expandable Conveyor | Warehouse Loading

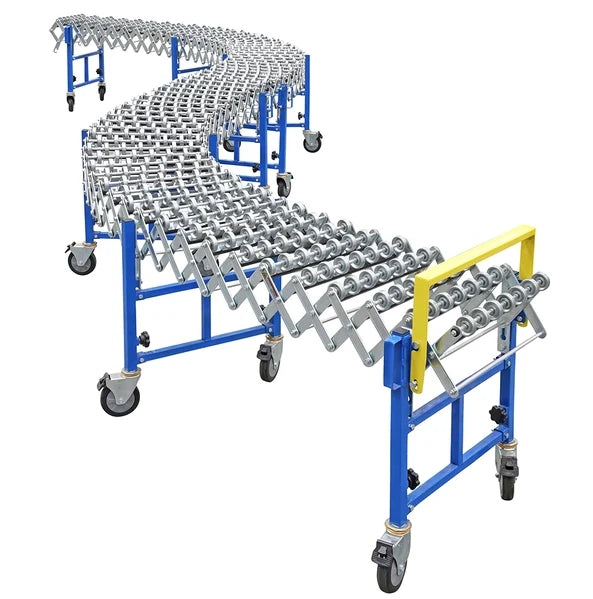

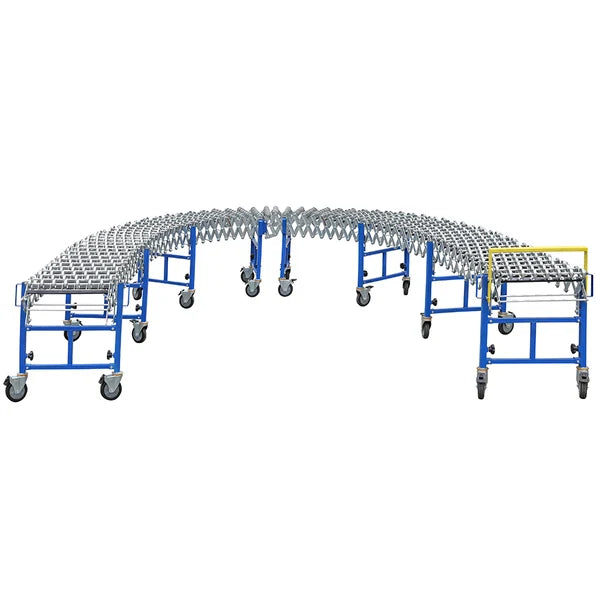

The EC600S is a flexible skate wheel conveyor used for moving goods between loading docks and internal storage areas. It fits into high-volume environments like warehouses, distribution centres, and production lines, and logistics hubs where goods need to be shifted quickly from a vehicle to a sorting area without manual lifting.

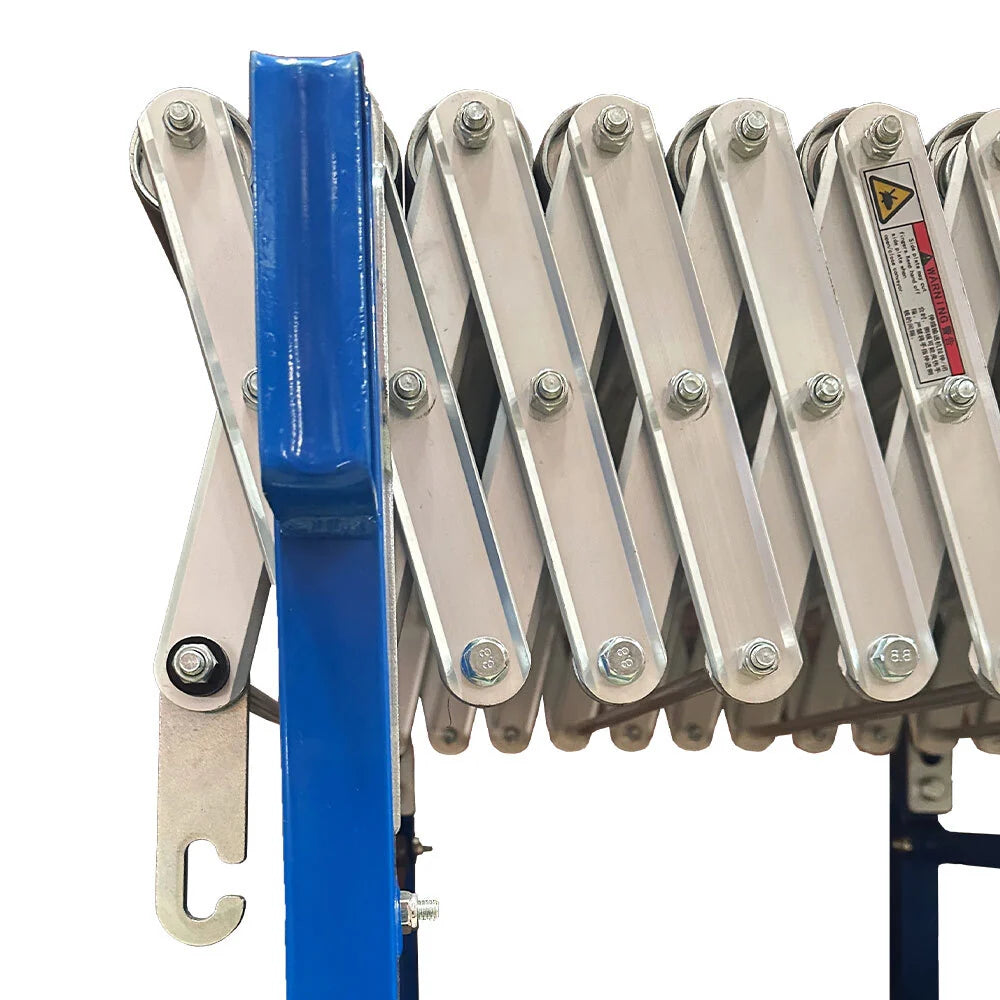

This piece of materials handling equipment operates by expanding and contracting to bridge gaps, allowing it to twist and turn to fit the specific layout of a loading bay. The skate wheels ensure a smooth glide for cartons and parcels, while the self-tracking design reduces the risk of items drifting off course during transit. Workers benefit from the adjustable height legs and lockable castors, which allow the unit to be positioned precisely against a truck bed or pallet jack and then locked firmly in place to prevent shifting during use. When the shift ends, the unit collapses for compact storage, keeping the floor clear of obstructions.

Built with a 600mm width and 125mm castors, the unit extends from 1000mm to 3900mm. It supports a load capacity of 100kg per metre and offers a height range of 690 to 1000mm. These specifications suit loading docks with varying vehicle bed heights.

Features

• Load capacity of 100kg per metre
• Extends from 1000mm to 3900mm

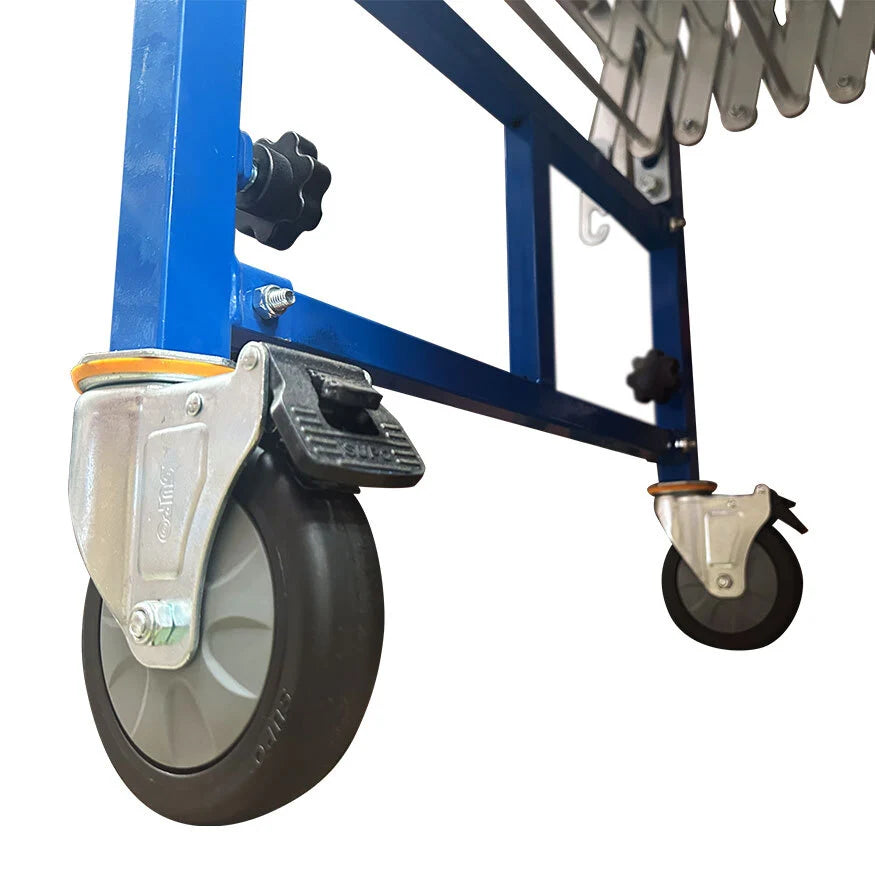

• Equipped with 125mm lockable castors
• Adjustable height range between 690mm and 1000mm
• Self-tracking skate wheel design
• 600mm wide frame for stable transport
