Moving heavy loads in sterile environments often leads to equipment corrosion and hygiene failures. This stainless steel pallet jack solves that problem by providing a durable, non-reactive lifting tool specifically f...
Description and applications

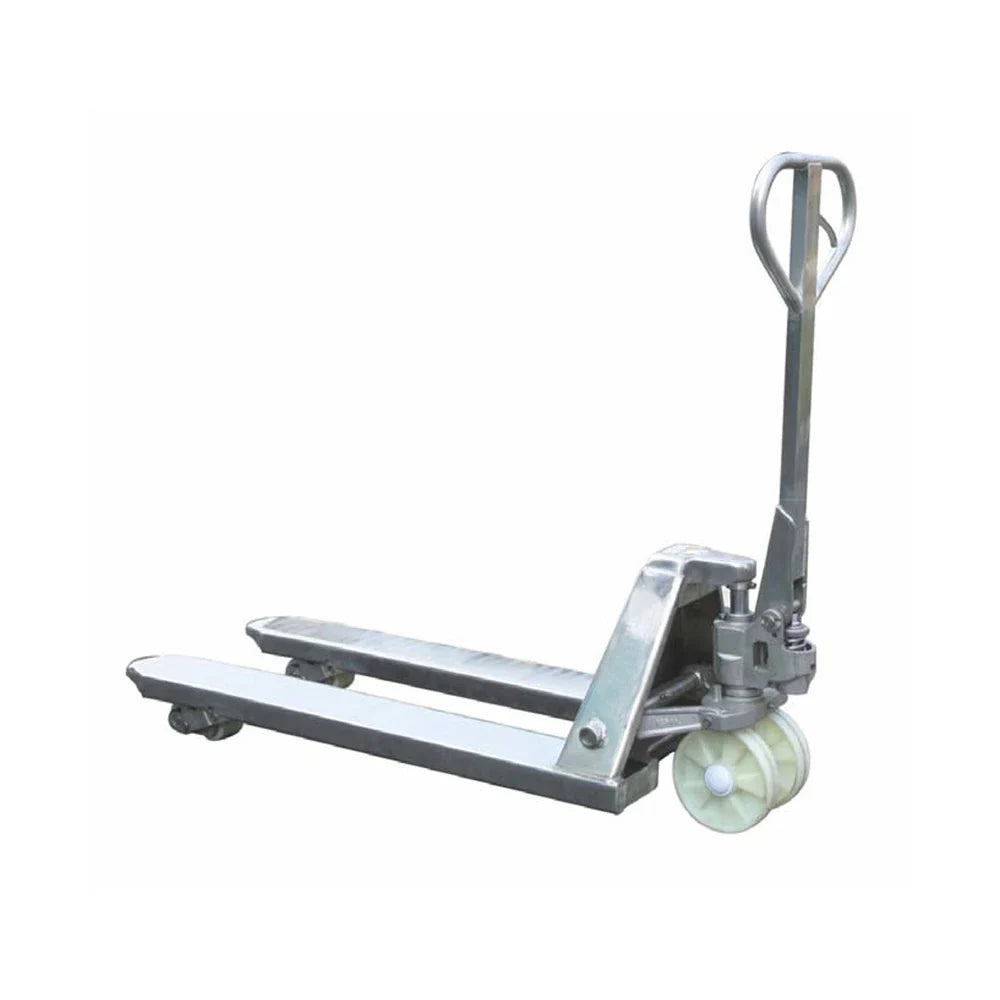

Moving heavy loads in sterile environments often leads to equipment corrosion and hygiene failures. This stainless steel pallet jack solves that problem by providing a durable, non-reactive lifting tool specifically for food processing plants and medical facilities where sanitation is a priority. It is a specialised piece of materials handling equipment that ensures pallets are moved without introducing rust or contaminants into the workspace.
The operator benefits from a totally sealed hydraulic pump, which prevents leaks and keeps the internal mechanism protected from harsh cleaning chemicals. A slow lowering hand control valve allows for precise placement of loads, reducing the risk of product damage during descent. To make the physical work easier, entry and exit rollers are fitted to the forks, which reduces the effort required to slide the jack under a pallet and protects the load rollers from premature wear. The fully adjustable push rod further improves ergonomics for the user during long shifts.
This unit features a 2000kg capacity and 1150mm fork length, with a fork height range of 75mm to 190mm. The overall fork width is 685mm, supported by 74 / 93 mm load rollers and a 180 x 50 mm steering wheel. These specifications suit wash-down areas and high-moisture cold rooms.
Features
- 2000kg load capacity for heavy pallet movement
- Stainless steel construction for corrosion resistance and easy cleaning
- Sealed hydraulic pump with slow lowering hand control valve
- Entry and exit rollers to reduce operator exertion
- 1150mm fork length for standard pallet support
- Fully adjustable push rod for improved handling
Specifications
| Model | ACS20-685 |
| Capacity | 2000kg |
| Fork height range | 75mm - 190 mm |
| Fork Size | 160 x 60 mm |
| Width overall forks | 685mm |
| Fork length | 1150 mm |
| Steering wheel | 180 x 50 mm |
| Load roller | 74 / 93 mm |
| Warranty | 1 Year |
