The TF200 is a manual scissor lift table built for moving heavy loads across rugged environments where standard lifters fail. It belongs on construction sites, outdoor workshops, or any industrial yard where the groun...
Description and applications

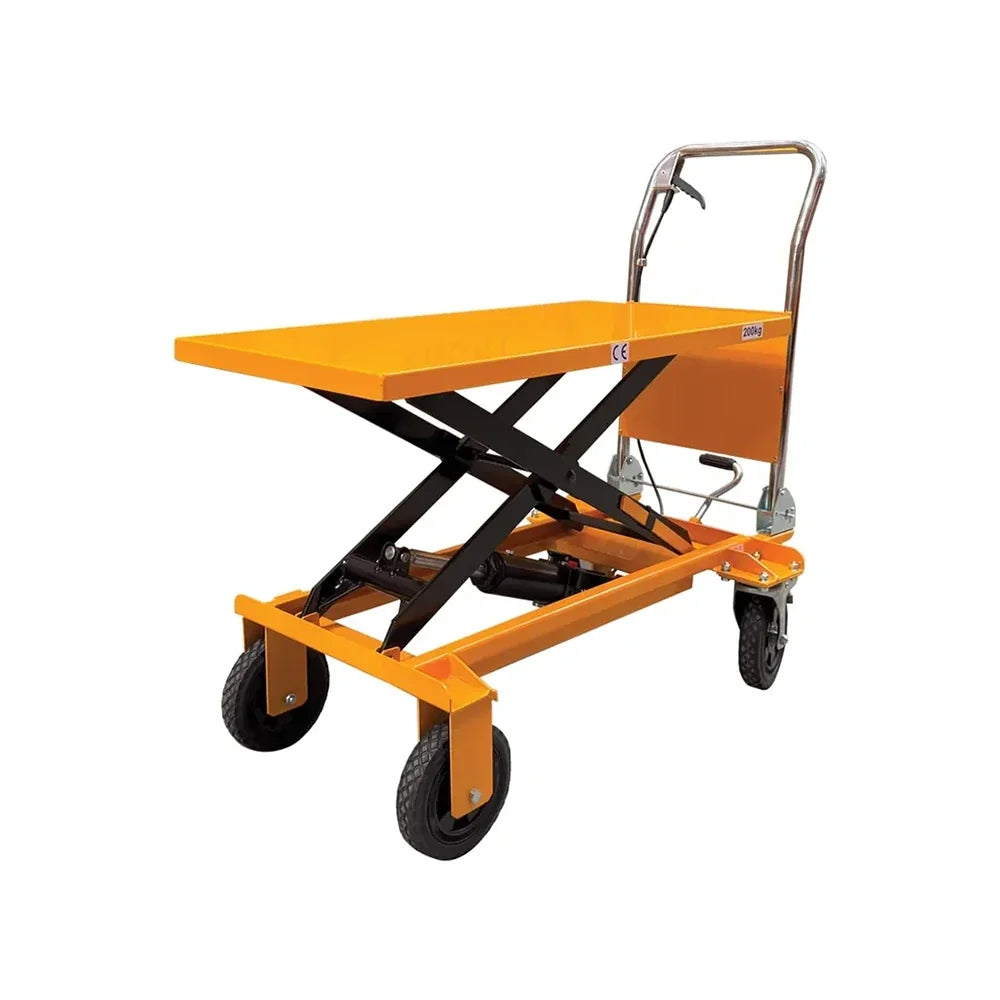

The TF200 is a manual scissor lift table built for moving heavy loads across rugged environments where standard lifters fail. It belongs on construction sites, outdoor workshops, or any industrial yard where the ground is uneven. As a versatile piece of materials handling equipment, it allows operators to raise loads to a comfortable working height without needing a powered hoist.
Stability is managed through shock absorbers fitted with integrated springs, which keep the platform level while moving over bumps and debris. This design reduces the risk of loads shifting or tipping on rough ground. The operator uses a precision hydraulic foot pump for the lift and a manual push system for height control, while a quick release system allows for rapid lowering. To ensure the unit stays put during loading or unloading, the rear wheels feature a positive braking system, making the process safer for the operator.
This unit features a 1000mm x 500mm x 35mm table with a height range of 345mm to 1010mm. It is supported by 200mm castors and has a total weight of 85kg. These specifications make it a reliable choice for heavy lifting on uneven outdoor sites.
Features
- 200kg lifting capacity for diverse industrial applications
- Shock absorbers with springs for stability on rough terrain
- Precision hydraulic foot pump for effortless lifting
- Positive braking system on rear wheels for secure positioning
- Quick release system for rapid table lowering
- Manual spring tension adjustment for height customisation
Specifications
| Model | TF200 |
| Capacity | 200kg |
| Table Dimensions | 1000mm X 500mm X 35mm |
| Table Height Range | 345mm - 1010 mm |
| Handle Height from Ground | 1050mm |
| Castor | 200mm |
| Weight | 85kg |
| Warranty | 1 Year |
