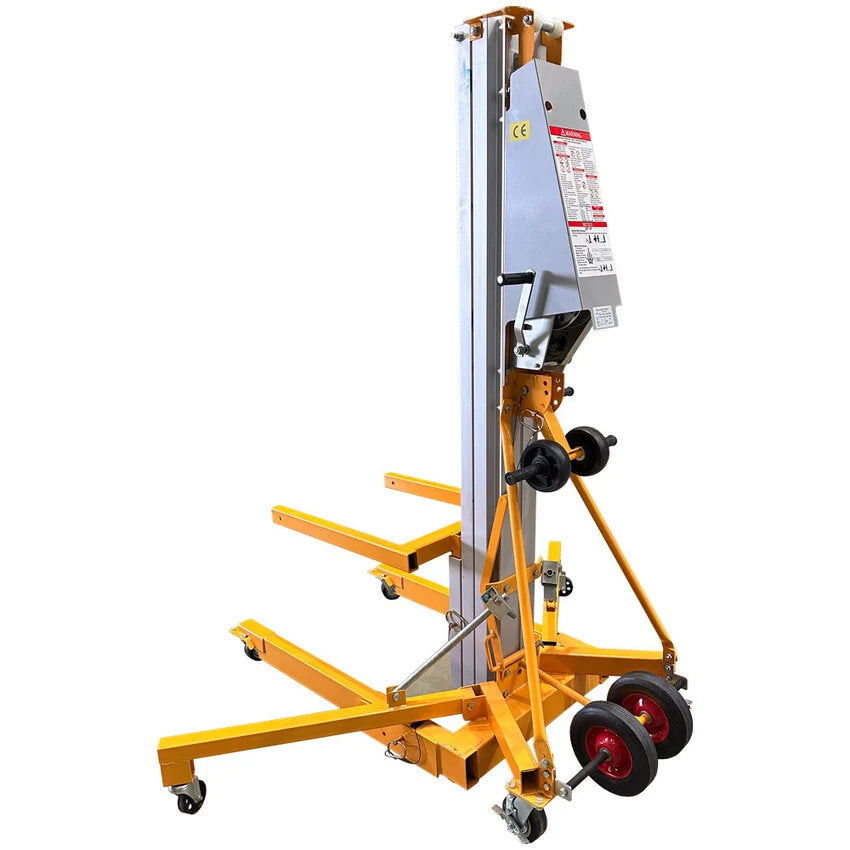

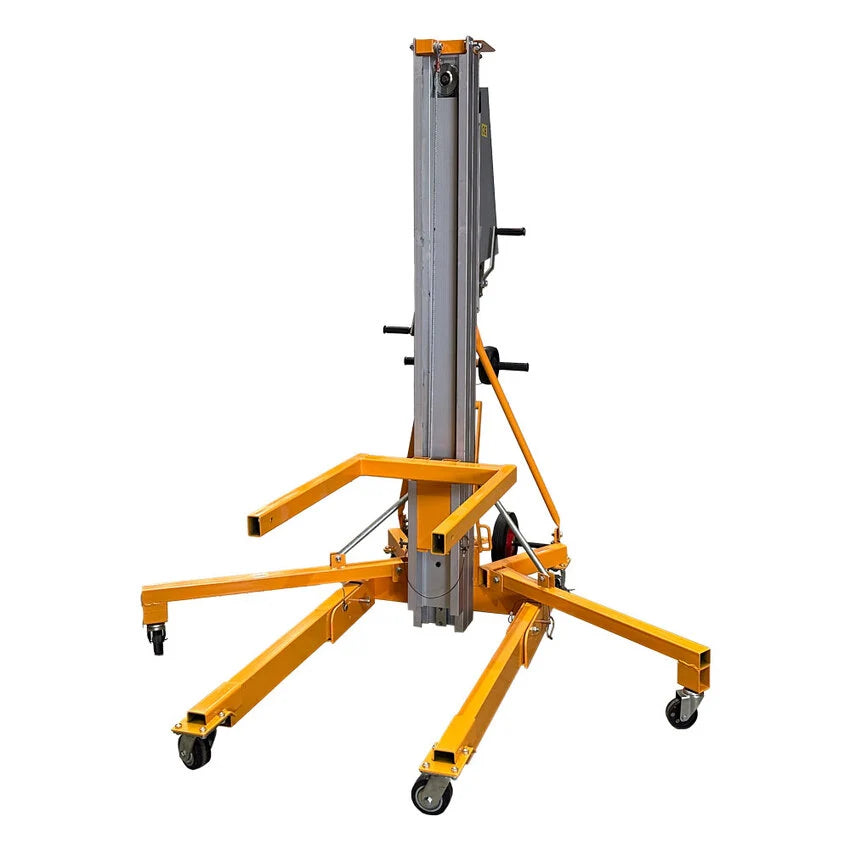

300kg Capacity Duct Lifter | Construction & Maintenance

Installing heavy overhead ducting and HVAC components requires a stable, controlled lift to avoid manual handling injuries. This duct lifter trolley is a specialised piece of materials handling equipment used in construction sites and facility maintenance workshops to hoist bulky materials to ceiling height without the need for scaffolding or ladders.

The unit simplifies the installation process by allowing a single operator to raise loads steadily using easy-to-operate controls. A secure locking mechanism holds the load in place, reducing the risk of accidental drops while technicians secure the ductwork. Because the legs fold up, the trolley can be manoeuvred through a single door in the upright position, making it far more practical for indoor fit-outs than larger machinery. The tool-free setup means it can be deployed quickly as the job moves from room to room.

This model features a 300kg capacity and a maximum working height of 5000mm. It is built with a unit height of 2000mm, fork length of 720mm, and leg length of 1500mm, weighing 145kg. This is a necessary tool for HVAC installers and commercial electricians.

Features

• 300kg lifting capacity for heavy overhead components
• Maximum working height of 5000mm

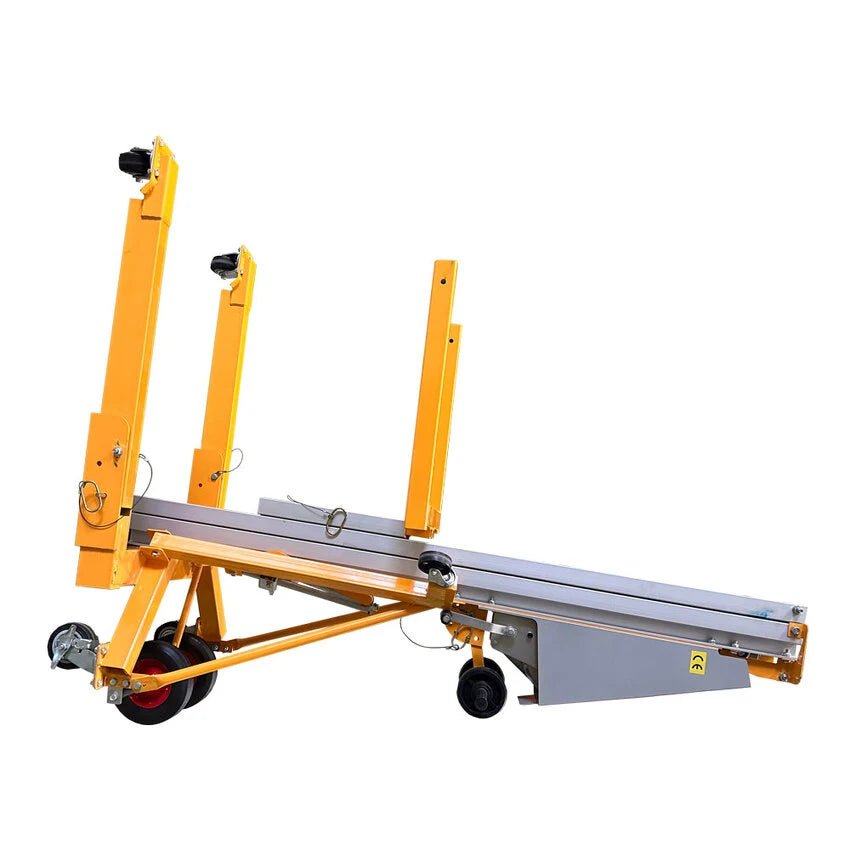

• Folding legs for compact storage and transport
• Tool-free setup for rapid deployment on site
• Fits through a single door in the upright position
• Integrated secure locking mechanism for load stability

Specifications
