350kg Capacity Drum Tilter | Industrial Warehousing

Manually tipping heavy steel drums is a high-risk task that often leads toils the back and shoulders of warehouse staff. This drum barrel tilter removes the physical strain of pouring liquids by providing a mechanical lift and tilt system. It is a specialised piece of materials handling equipment suited for chemical plants, food processing facilities, and industrial workshops where bulk liquids must be dispensed safely.

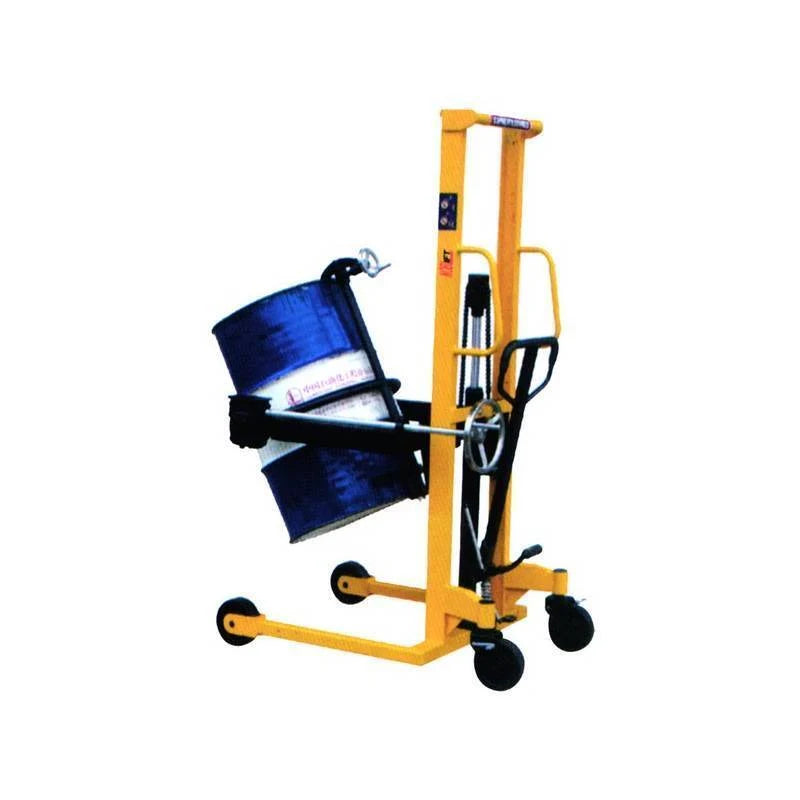

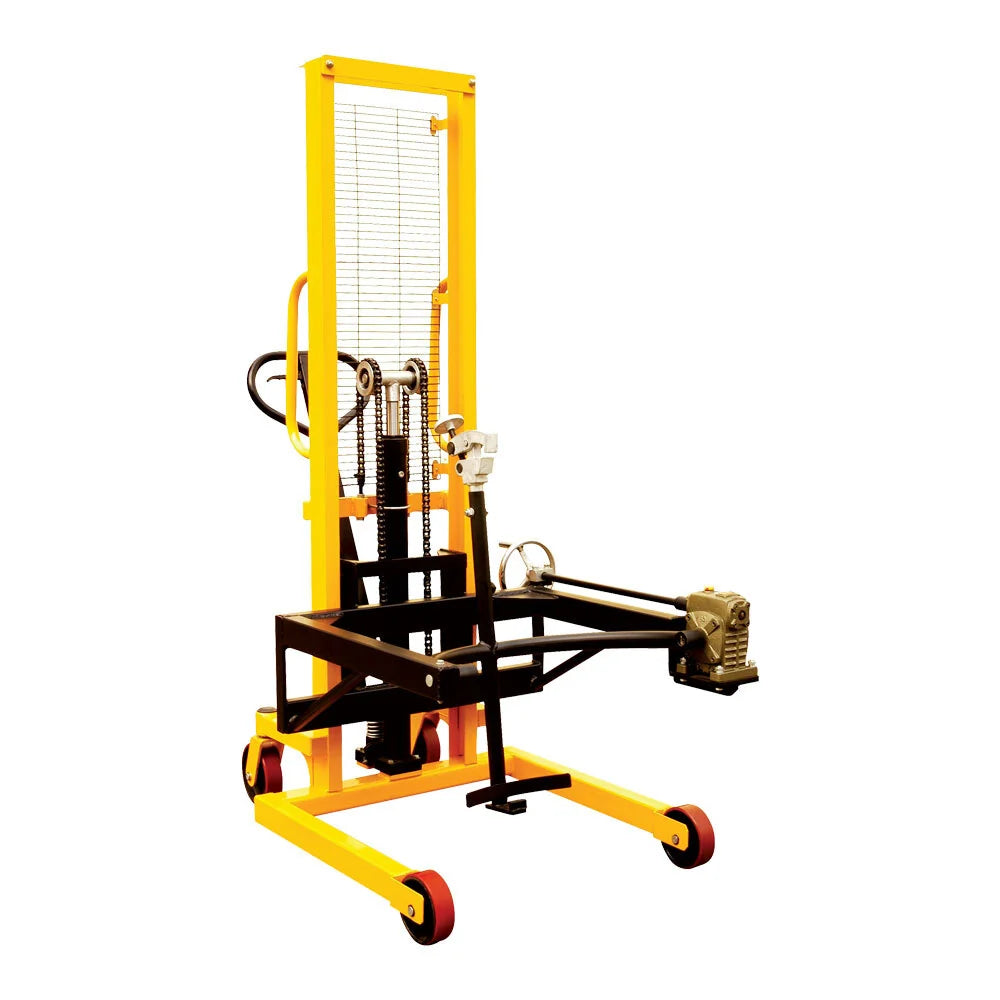

The operator secures the drum using a screw-operated rim clamp, which eliminates the need for swapping attachments between different drum sizes. A hydraulic foot-operated pump handles the heavy lifting, raising the barrel to the required height without manual hoisting. Once positioned, the crank-operated worm gearbox and enclosed chain drive allow the user to tilt the drum smoothly. This controlled rotation reduces the risk of spills and splashes, ensuring the operator maintains a safe distance from the contents while using the ergonomic handle for precise control.

This unit supports a maximum capacity of 350kg and is compatible with steel drums up to 200 Litres. It features a lifting height of 1425mm and a 180 Degree rotation. The overall dimensions are 1190 x 890 x 2000mm with a total equipment weight of 155kg.

Features

• 350kg load capacity for heavy industrial drums
• Hydraulic foot-operated pump for effortless lifting
• Crank-operated worm gearbox with enclosed chain drive
• Screw-operated rim clamp for secure drum attachment
• 180 Degree rotation for controlled dispensing
• Suits steel drums up to 200 Litres

Specifications
