Manually lifting and positioning heavy drums is a high-risk task that slows down production and strains operators. This hydraulic drum loader removes the need for heavy manual lifting by providing a mechanical advanta...
Description and applications
Manually lifting and positioning heavy drums is a high-risk task that slows down production and strains operators. This hydraulic drum loader removes the need for heavy manual lifting by providing a mechanical advantage for moving 205L drums. It is a specialised piece of materials handling equipment designed for high-traffic environments like chemical warehouses, automotive service centres, and industrial workshops.

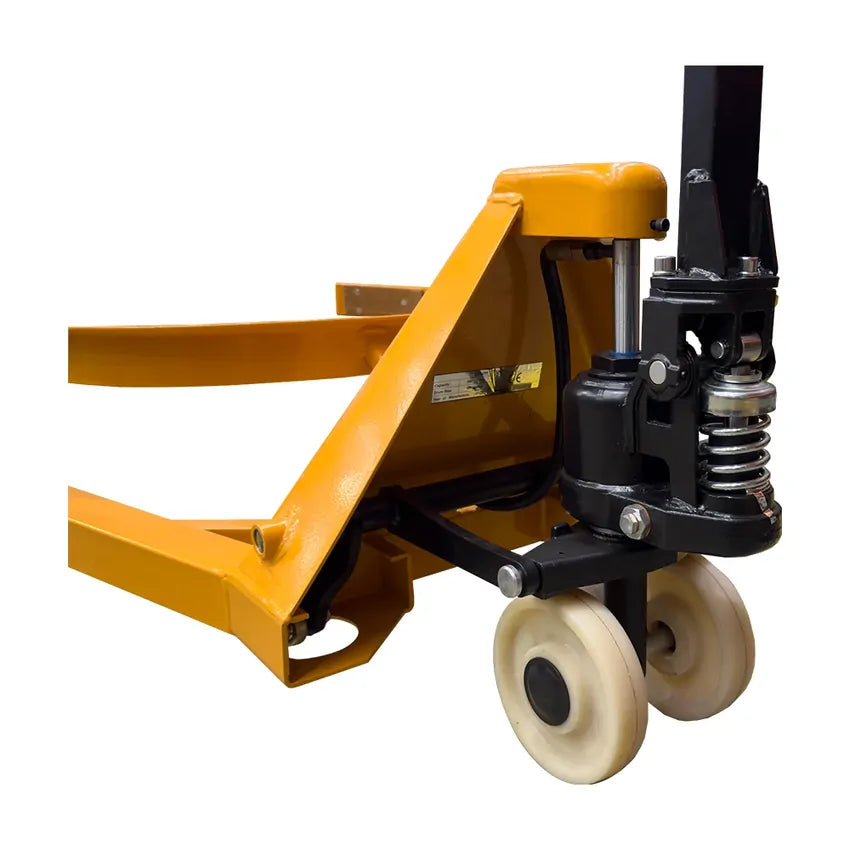

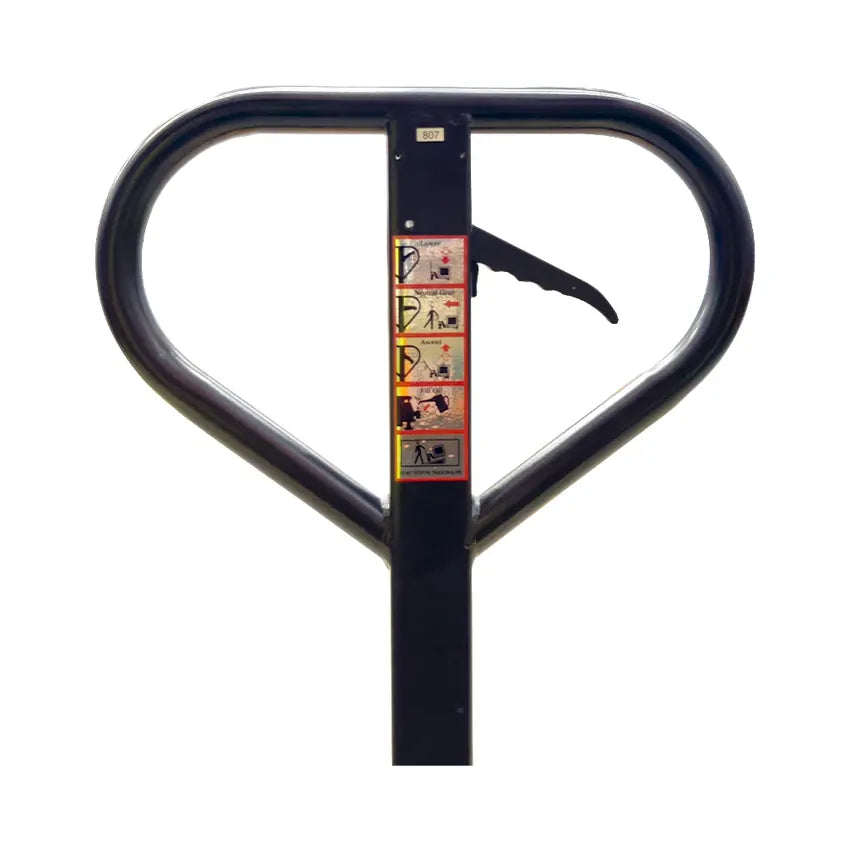

The integrated hydraulic mechanism allows a single operator to raise and lower drums smoothly, reducing the physical effort required to move stock from floor level to a bench or vehicle. By using the three-position control lever, the user can switch between Ascent, Lower, and Neutral positions for precise height adjustments. The secure hoop design keeps the drum stable during transport, which reduces the risk of spills or tipping while manoeuvring through tight aisles or across workshop floors.
This unit features a load capacity of 365kg and is built specifically for 205L/44 gallon drums. The arm operates between a minimum height of 270mm and a maximum height of 390mm with a radius of 290mm. The overall dimensions are 1022 x 722mm with a net weight of 53kg.
Features
- 365kg (800lbs) load capacity
- Suits standard 205L / 44 gallon drums
- Hydraulic lifting mechanism for controlled movement
- Three-position control lever: Lower, Ascent, and Neutral
- Secure hoop design for stable transport
Specifications
| Model | CAG36 |
| Capacity | 365kg/800lbs |
| Acceptable Drum Style | Suits 205L/44 Gallon Drums |
| Max. Height of Arm | 390mm |
| Min. Height of Arm | 270mm |
| Radius of Arm | 290mm |
| Oversize (L x W) | 1022 x 722mm |
| Net Weight | 53kg |
| Warranty | 1 Year |
