90kg Aluminium Hand Stacker | Warehouse & Lab

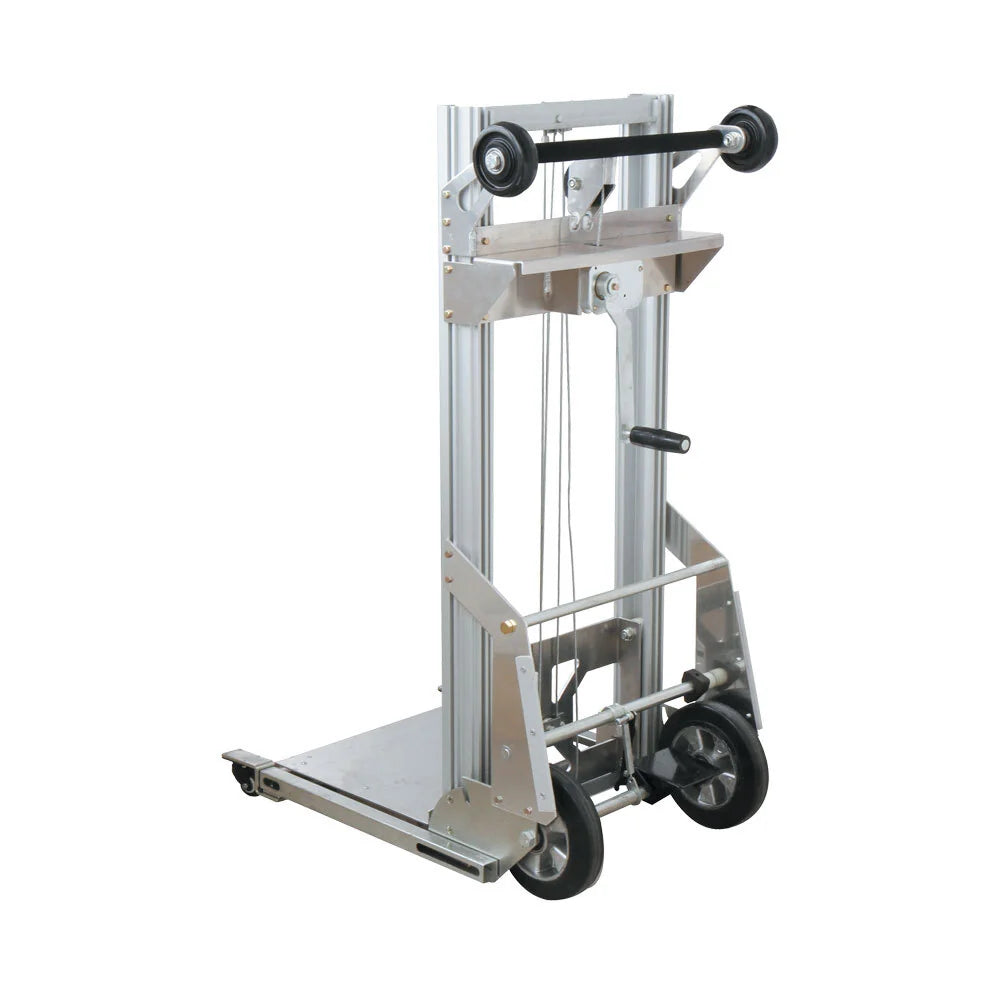

Warehouse operators and laboratory technicians require precise, lightweight tools for vertical movement. This aluminium hand stacker is a versatile piece of materials handling equipment that functions as both a lifter and a platform trolley. It is built for environments where space is limited and the ability to move loads from floor level to bench height is essential for daily productivity.

The unit operates via a manual winch system, which avoids the common leaks and maintenance issues associated with hydraulic rams. This makes it a reliable choice for those who need consistent performance without the downtime of fluid refills. The lightweight aluminium mast allows a single operator to manoeuvre the device through narrow aisles or tight corridors with ease. When the task changes, the unit converts into a platform trolley, while the integrated brake function ensures the load remains secure during the lifting process. The flanged rollers on the lifting runners provide a stable track, reducing the physical effort required to raise loads to the maximum height.

This model features a 90kg capacity and a platform measuring 355 x 420mm. It reaches a maximum platform height of 1500mm from a minimum of 55mm. The unit weighs 30kg and uses 8" rubber wheels for movement.

Features

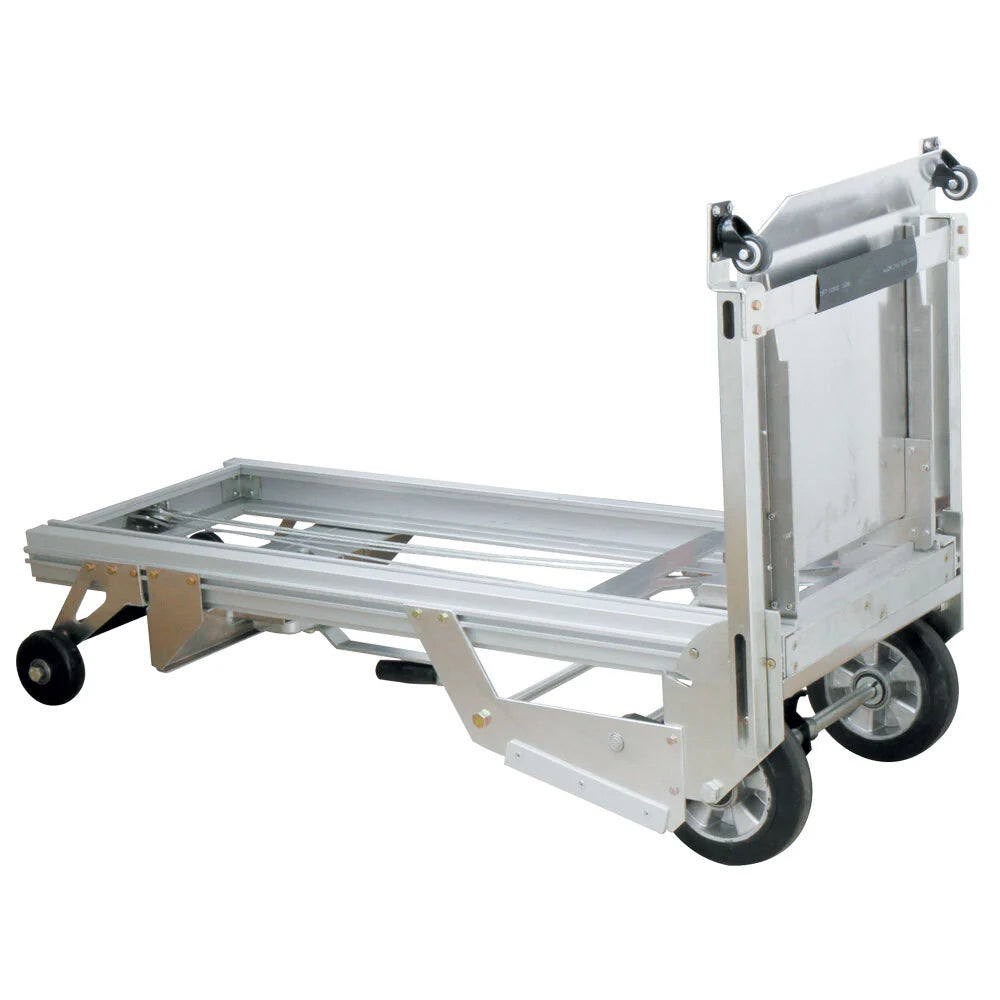

• Converts from a lifter to a platform trolley
• Winch-operated lifting system avoids hydraulic failure
• Lightweight aluminium mast for easier manoeuvring
• Equipped with flanged rollers and a safety winch
• Integrated brake function for secure operation

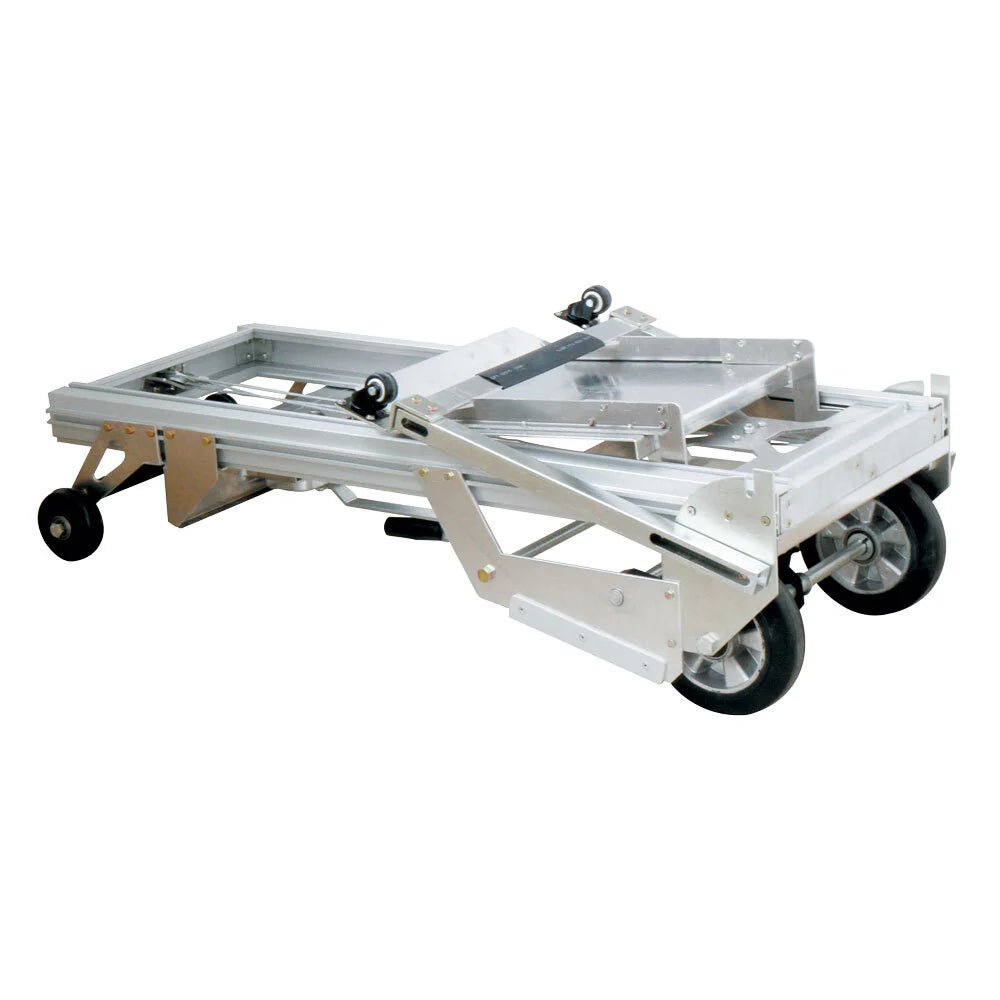

• Easy disassembly for compact storage and transport

Specifications
