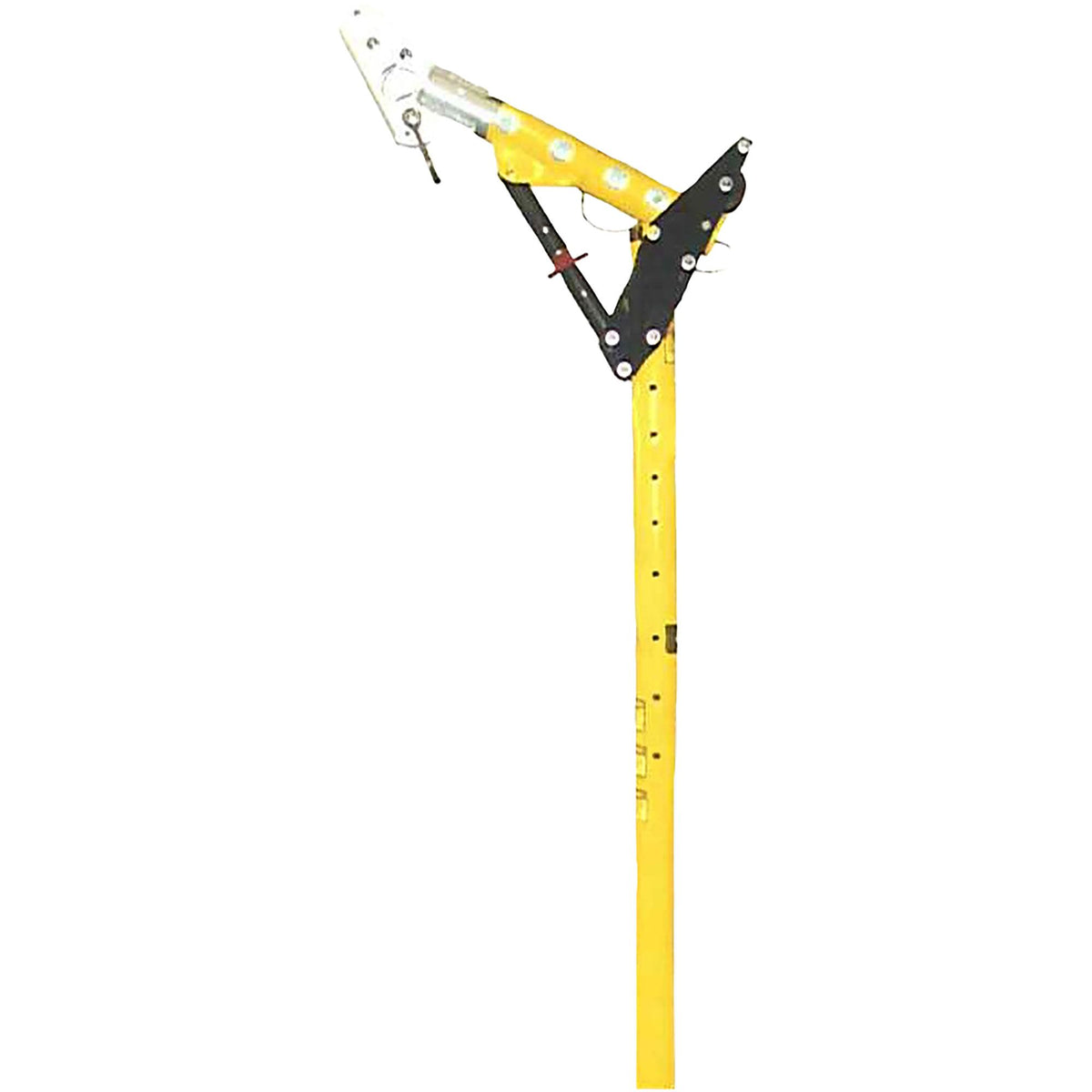

Adjustable Mast Anchorage System

The system is a portable anchorage solution designed for use in confined spaces where fixed attachment points are unavailable. It breaks down into lightweight components that can be transported and assembled without tools, enabling rapid deployment in tight or remote locations. Its modular construction allows integration with various base types and optional mast extensions to suit different site requirements. Multiple winch or lifeline units can be attached as needed to support simultaneous operations or redundancy. All components are engineered to meet relevant safety standards for fall arrest and retrieval applications. The overall mast height can be adjusted between 1.88 metres and 2.26 metres to accommodate varying entry depths. The mast offset range spans from 0.30 metres to 0.74 metres, allowing positioning flexibility around obstructions. It is compatible with a single lower mast extension to extend reach when necessary. The complete unit weighs 13.2 kilograms, making it manageable for one person to handle during setup and relocation.

• Tool-free assembly for quick setup in confined spaces
• Adjustable height and offset for versatile positioning
• Compatible with optional mast extension for increased reach
• Supports multiple winch or lifeline attachments as required
