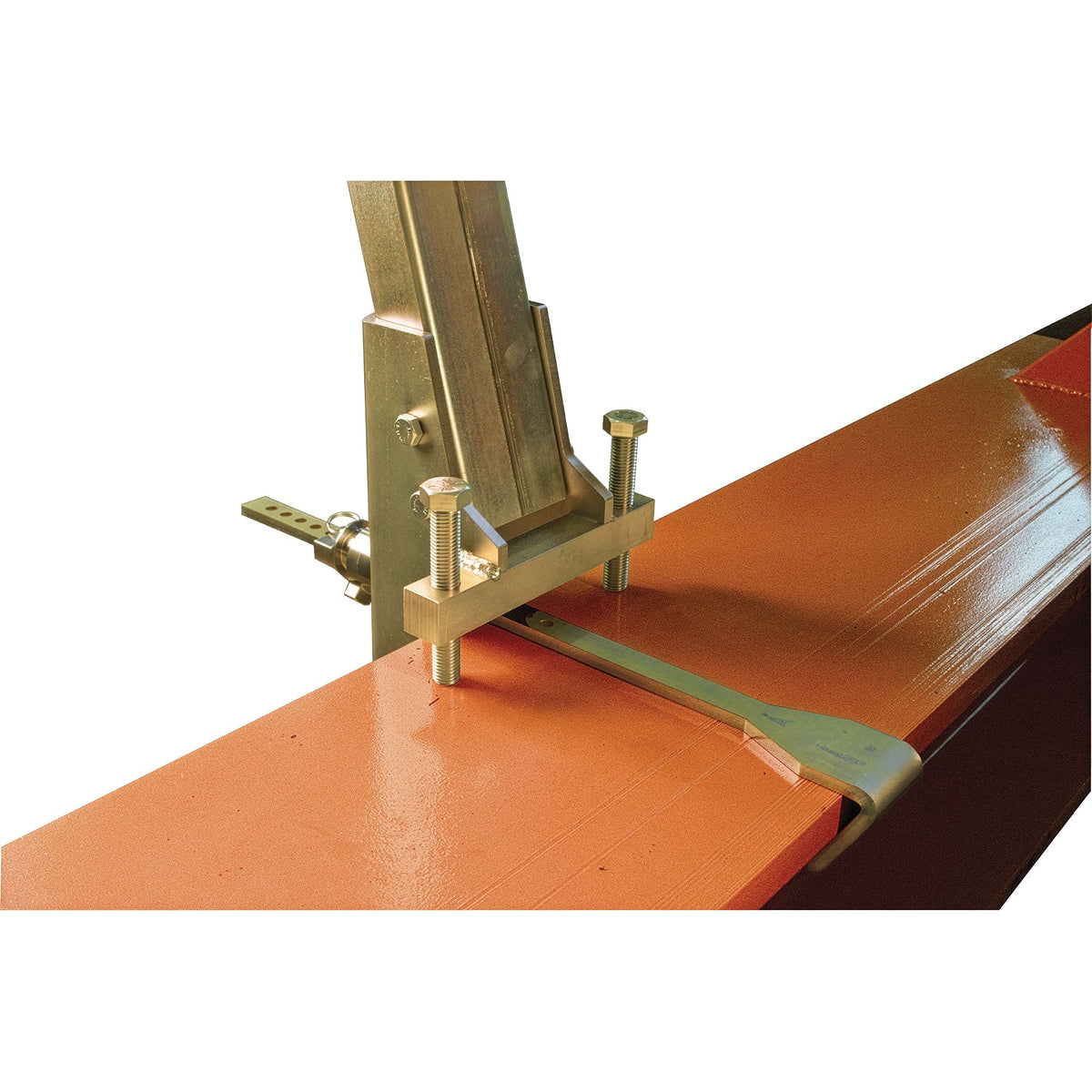

Miller Temporary Horizontal Lifeline System

The system is a compact, lightweight anchorage solution designed for quick setup and removal by a single person. Its above-beam adjustment mechanism allows for easy positioning without requiring multiple installers. The continuous pass-through design ensures a secure 100% tie-off connection across multiple spans, maintaining constant protection. Stanchions in the system can also function as individual anchor points when needed. It supports spans up to 36.57 metres, making it suitable for extended work areas along beams or edges. A built-in tension indicator helps users achieve correct tension to meet fall clearance requirements. Bases are interchangeable between steel and concrete surfaces, enhancing adaptability across different job sites. The energy absorber is made of stainless steel and manages fall forces effectively, limiting peak loads on the structure. Constructed from zinc-plated steel, the system resists corrosion and is built for long-term use in harsh environments. It complies with OSHA, ANSI Z359.2-2004, and AS/NZS 1891.2 safety standards. The complete package includes three stanchions, one intermediate pass-through bracket, two energy absorbers, a turnbuckle, cable, and all necessary hardware.

• Designed for one-person installation and dismantling
• Supports up to four workers across multiple spans
• Features interchangeable bases for steel and concrete use
• Includes tension indicator for proper fall clearance
