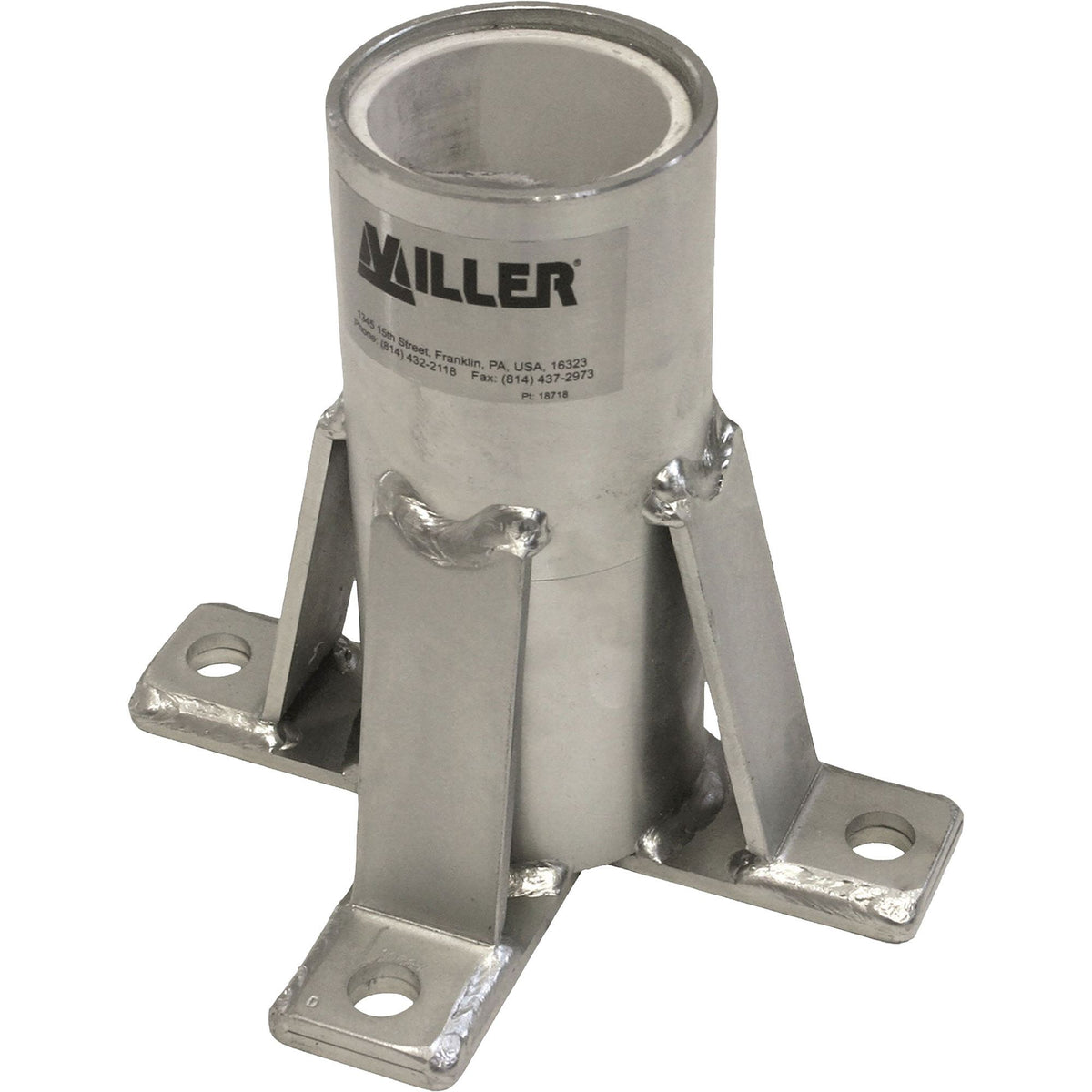

DuraHoist Floor Mount Sleeve 304 Stainless Steel
Product details
Product information
At a glance
Catalogue details
- Catalogue configurations
- 1
- Colour
- Silver
Documents and compliance
Request the current approved file using this product's SKU before relying on a certificate, datasheet or compliance claim.
The product is a floor-mounted sleeve designed to provide a secure interface between a vertical mast and a supporting horizontal structure. It is constructed from 304 grade stainless steel with a zinc-plated finish fo...
Description and applications
The product is a floor-mounted sleeve designed to provide a secure interface between a vertical mast and a supporting horizontal structure. It is constructed from 304 grade stainless steel with a zinc-plated finish for enhanced corrosion resistance. The sleeve includes an internal PVC liner that meets ASTM B633-85 Type II SC2 specifications. This liner helps reduce wear and prevents direct metal-to-metal contact during installation and use. The unit weighs 6.1 kilograms and is intended for permanent or semi-permanent fixation in place. It is engineered to interface correctly with compatible mast systems without requiring additional adapters.
It protects against lateral displacement, rotational movement, and pull-out failure of the mast under load. By distributing forces across the mounting surface, it reduces stress concentrations that could lead to concrete cracking or steel deformation. The zinc plating and stainless steel base work together to resist rust in humid or chemically exposed settings. The PVC liner safeguards both the mast and the sleeve from abrasion during tightening or vibration. Together, these features maintain alignment and integrity of the anchorage point over time. This protection is critical in applications where sudden load shifts or environmental exposure could compromise safety.
It is used in industrial facilities, maintenance bays, and construction zones where temporary or semi-permanent vertical support systems are required. Common applications include securing hoists, davits, or access equipment to factory floors, mezzanines, or steel platforms. The sleeve is installed by embedding it into wet concrete or bolting it to pre-drilled steel plates. Once set, the mast is inserted and fastened using the appropriate clamping mechanism. It is not intended for use in overhead lifting or as a primary fall arrest anchor unless specifically certified for such use. Proper installation follows the manufacturer’s guidelines for torque and alignment.
- Made from 304 stainless steel with zinc plating for corrosion resistance
- Includes PVC liner compliant with ASTM B633-85 Type II SC2
- Designed to mount on horizontal concrete or steel structures
- Weight is 6.1 kilograms
